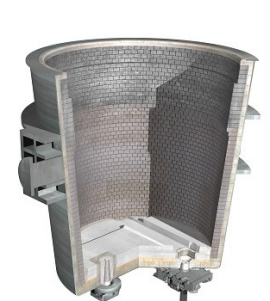

Carbon Bonded Working Linings

Benefits of Vesuvius solutions

  • Improved corrosion resistance
  • Cleaner steel
  • Reduced CO2 emissions
  • Energy savings
  • Potential to increase ladle capacity

Engineered materials

Supermag* range of standard and low carbon steel ladle products

Low-carbon material technology

  • Low carbon: reduces the potential for carbon pick-up in the steel melt

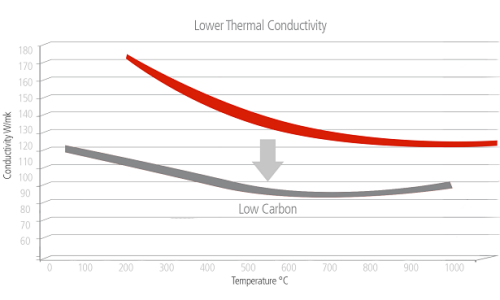

  • Low conductivity: offers lower heat transfer and energy losses from the ladle
  • Excellent slag resistance: comparable to high carbon containing products
  • Optimized structural flexibility: to maintain good resistance to thermo-mechanical cracking and spalling
Low carbon material technology
Ladle area Typical material Typical steel ladle carbon levels Vesuvius target carbon level
Slag line Magnesia-carbon (MgO-C) 10-12% C 5-7% C
Sidewall Magnesia, antioxidants & graphite (AMG)
Megnesia alumina carbon (MAC)
Magnesia carbon (MgO-C) brick
5-8% C 2-4% C
Bottom AMG or MgO-C brick 5-8% Carbon

2-4% Carbon

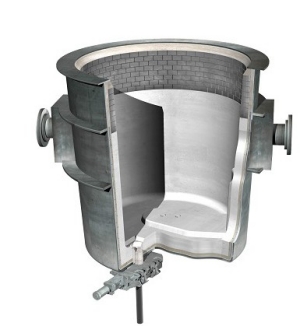

Cast Ladle Lining Solutions

Benefits of Vesuvius solutions

  • Contain steel and slag safely
  • Maximise capacity - utilising the thinnest lining possible
  • No negative effect on steel quality
  • Long, balanced and predictable life
  • Low heat loss
  • Low thermal capacity
  • Keep shell cool
  • Optimised steel yield
  • Low carbon footprint

Engineered materials

Synthetic Spinel & Spinel-Forming Castables
Self-Flow“

Installation expertise

  • Design Services
  • Experienced installation personnel - either Vesuvius’ installation teams or certified partners – trained to optimally install all Vesuvius Monolithic Refractory solutions, using approved installation equipment.

Installation equipment

Specialized installation equipment; designed to obtain the optimal installation efficiency and lining performance from Vesuvius Monolithic Refractory materials

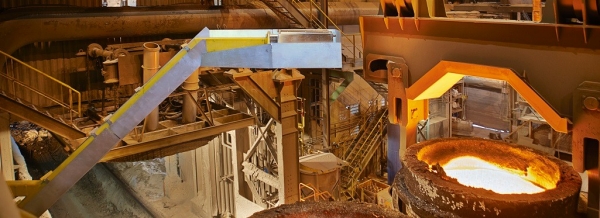

Ladle Lining Maintenance

Engineered lining maintenance utilizing laser measurement technology with robotic gunning repair.
