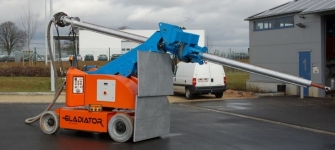

Mobile Shooter

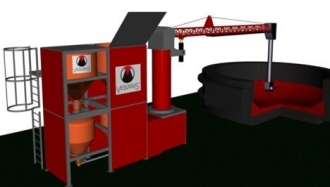

Fixed Installed Robotic for Gunning and Fettling

Laser Contouring System (LCS) for High Temperature Laser Refractory Thickness Measurement

The LCS uses a suite of sensors capable of measuring the remaining lining thickness in vessels used to produce and refine molten metal. Whether you are making steel, copper or aluminum, we have a mobile or fixed position system that can provide the critical lining thickness information you need to maximize vessel up-time and minimize operational cost.


All systems provide the following measurement information in simple, easy to read formats:

  • Refractory thickness in 2-D or 3-D format
  • Tabular output with auto-transfer to plant Level II system
  • Refractory wear rate and lifetime prediction capability
  • Optional surface temperature measurement using integrated two-color pyrometer
  • Small (3.6mm) beam diameter
  • High accuracy (±1.8mm 1σ) scanning
  • Fast – 120,000 Hz scan rate
  • New crack detection algorithm measures width and depth of refractory cracks
  • Bath Level measurement
