Tundish Impact Pads

Benefits of Vesuvius TURBOSTOP* solutions

Optimizes:

  • Yield by maximizing prime steel available
  • Safety

Reduces:

  • Steel re-oxidation by minimizing turbulence
  • Tundish cover powder consumption

Minimizes:

  • Splash at start up
  • Tundish slag emulsification
  • Skull weight

Maximizes:

  • Inclusion floatation during casting
  • Inclusion floatation after ladle change
  • Steel yield and cost savings

Increases:

  • Sequence length by reducing clogging
  • Working lining durability



Engineered materials

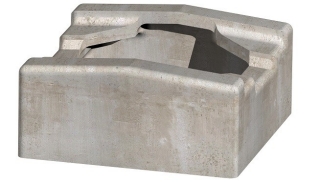

Turbostop is a Patented Tundish Flow Control System used in the Impact Area of a Continuous Casting Tundish Custom Designed and Engineered for Each Caster by Water Modelling Turbostop is installed in the impact area of the Tundish, directly beneath the Ladle Shroud pouring stream.
It works by dampening the energy of the incoming stream, thus suppressing turbulence in the pour area.
The resultant upward flow eliminates short-circuiting of the steel through the Tundish, giving a  more controlled steel flow.

Expertise

Computational Fluid Dynamic (CFD) engineered impact pad designed for specific tundish objectives.

Engineered Tundish Cavity Shaping

Benefits of Vesuvius engineered tundish cavity shaping

Yield Enhancement System improves Tundish flow pattern:

  • Optimized tundish residence time – Cleaner Steel
  • Reduced splash at start up – Safety
  • Better quality – Less downgrades
  • Reduced transition zone – Increased yield
  • Reduced skull size – Increased yield
  • Improved Tundish turnaround time

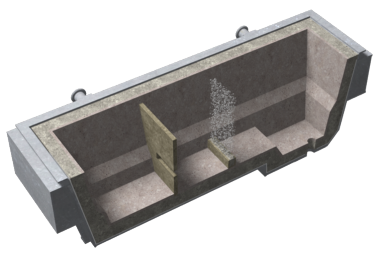

Fully Engineered precast tundish furniture system with optimized tundish backup lining construction, utilizing computational fluid dynamic (CFD) design to custom design the application to suit specific steelmaking needs.
Materials used are designed to have high density and strength to give excellent corrosion resistance, coupled with low thermal expansion for stability in use.

Precast Complementary Tundish Shapes

Maximized yield & quality

Vesuvius tundish flow-modifier offerings provide long-life refractoriness combined with an engineered system approach to deliver real value. These advanced solutions are uniquely designed to homogenize temperatures, eliminate re-oxidation particles and float inclusions.

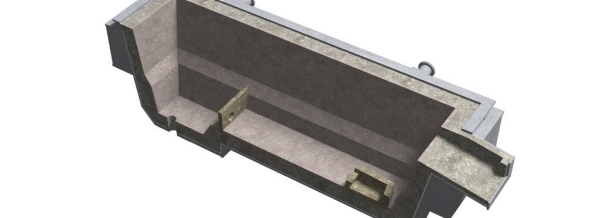

Precast complementary tundish related shapes: dams, weirs, baffles, anti-vortex plates, work in concert with the customized design.

Installation expertise

Flow modelling:
Both Computational Fluid Dynamics and water modeling provide the optimum design for any individual tundish. These specialized precast shapes are designed to optimize yield and product quality.
