Foseco offers a package of consumables and equipment for the production of clean, reproducible metal quality and uniform microstructure. The range of products we supply offer advantages in safety, health and environmental issues, automation and process control and productivity.
INITEK Initialisation Process
INODEX and the FOSECO CONVERTER, lined with KALTEK ISO, have been developed to reduce Mg consumption, to reduce and stabilise the requirement for inoculation, to improve the consistency of properties, to improve environmental conditions, and to reduce liquid metal cost.
It is particularly suitable for foundries who are using FeSiMg for nodularising in a tundish cover ladle or open sandwich ladle. The system achieves high Mg recoveries compared to the normal range of 40-60%.
INODEX is a ferroalloy based on 48% silicon specially designed for the Foseco INITIALISING process for the production of ductile iron. It is used as an INITIALISING alloy to control the sulphur/oxygen activity of the melt. Sometimes a light late stream inoculation practice is required in conjunction with the INODEX treatment to fine-tune the nucleation of the castings.
The unique triangular prism shape of the FOSECO CONVERTER reduces heat loss from the exposed surface of metal by radiation into the lining. It also gives a higher ferrostatic pressure above the treatment alloy in the pocket, further improving the recovery of Mg.
KALTEK ISO is an alumino-silicate based highly insulating ladle lining system offering a clean, simple and fast application.
Inoculants for All Types of Iron
INOCULIN inoculants are a range of granular products for the inoculation of all cast irons and may be mixtures of inoculating materials or single ferrosilicon alloys containing one or more alloying elements. They are available in a variety of grain sizes for metal stream, ladle, in mould and spun pipe application.

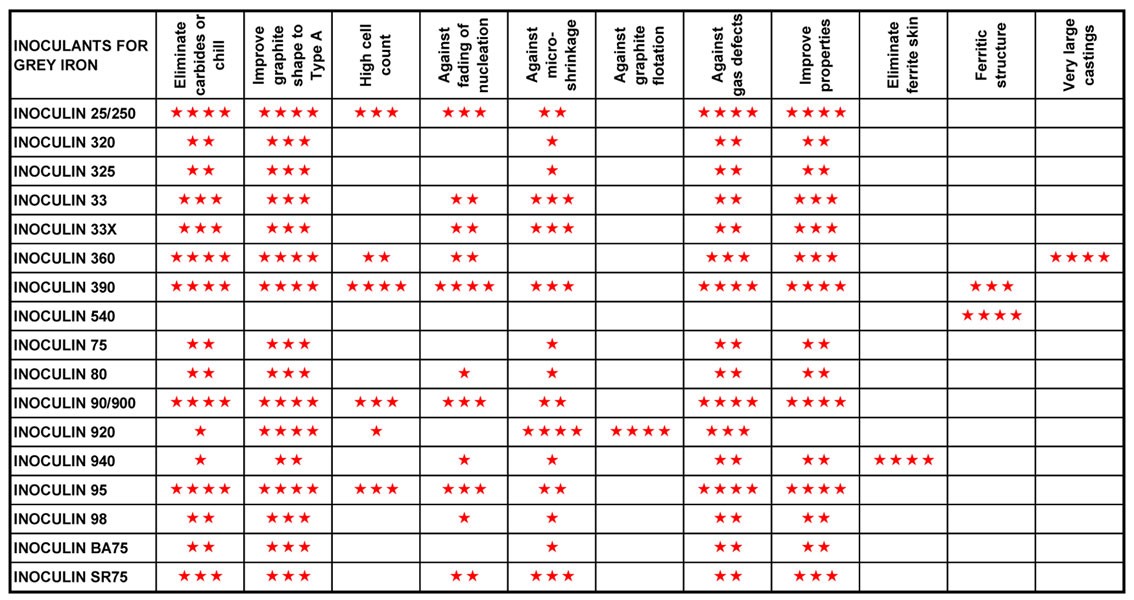

INOCULIN Inoculants for Grey Iron

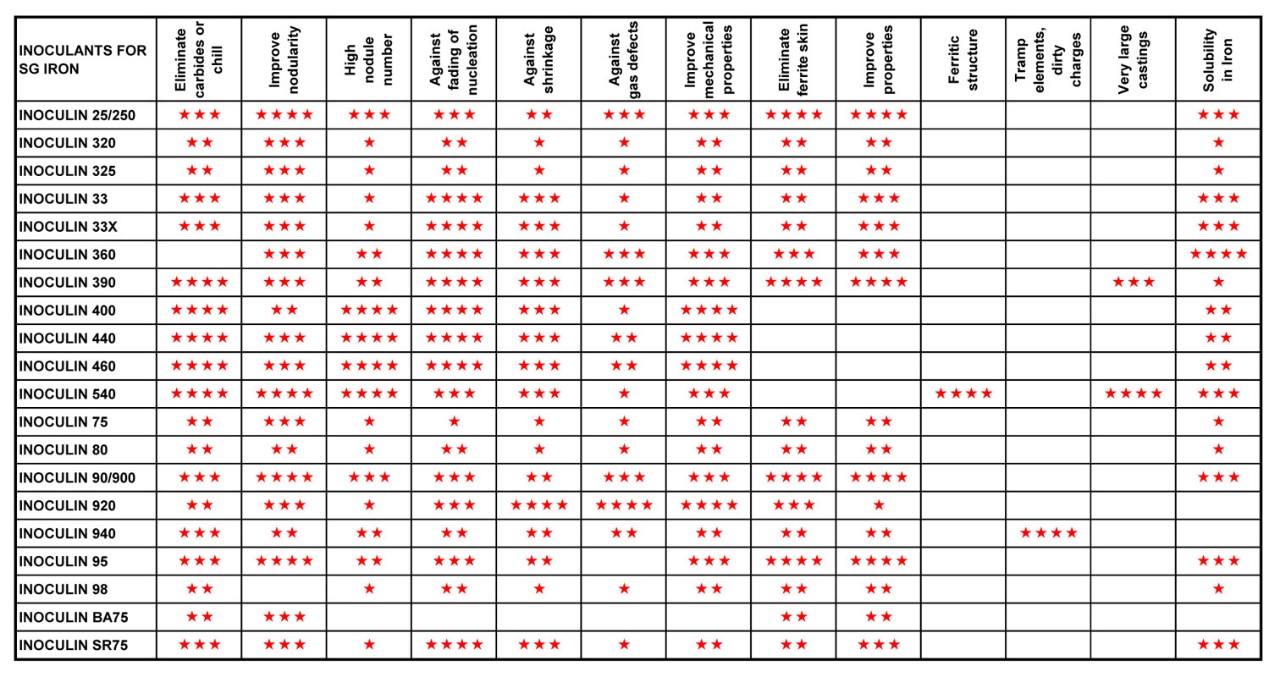

INOCULIN Inoculants for Spheoroidal Graphite Iron
MSI (metal stream inoculation technology)
Foseco's MSI SYSTEM is an automatic metal stream inoculation system for use with mechanized and automatic pouring systems. When used in conjunction with INOCULIN in-stream grades highly reproducible results are achievable. The system has an in-built computer and an RS232 interface and remote maintenance and control software is supplied as standard.
The system monitors the inoculant level, discharge pipe, inoculant flow, sliding gate, compressed air and equipment temperature in real-time.
Continuous Temperature Measurement Systems
The ACCUMETRIX system continuously monitors temperature in real-time inside the pour box of auto-pour and pressure pour furnaces.
NODULANT tablets are a low silicon magnesium addition for the ladle treatment of sg iron. They can be used in the overpour or sandwich processes by themself or in conjunction with MgFeSi.
NODULANT granular spheroidisers for compacted and nodular cast irons are available in a variety of chemistries and grain sizes.
|Chemical Analysis (%)||Grain Size
|NODULANT 225||4.5/5.5||42/50||1.8/2.6||< 0.8||1.9/2.5||2/10 - 4/30 - 10/30|
|NODULANT 016||5.5/6.5||42/50||0.8/1.6||< 1||< 0.25||2/10 - 4/30 - 10/30|
|NODULANT 116||5.5/6.5||42/50||0.8/1.6||< 1||0.4/0.7||2/10 - 4/30 - 10/30|
|NODULANT 116A||5.5/6.5||42/50||0.8/1.6||< 0.8||0.8/1.2||2/10 - 4/30 - 10/30|
|NODULANT 137||6.2/7.2||42/50||2.7/3.5||< 0.8||0.45/0.75||2/10 - 4/30 - 10/30|
|NODULANT 137A||5.6/6.6||42/48||2.5/3.5||< 0.8||0.8/1.2||2/10 - 4/30 - 10/30|
|NODULANT 019||8.4/9.6||42/48||0.8/1.6||< 0.8||< 0.25||2/10 - 4/30 - 10/30|
|NODULANT 119||8.4/9.6||42/50||0.8/1.6||< 0.8||0.8/1.2||2/10 - 4/30 - 10/30|
|NODULANT 139||8.4/9.6||42/50||2.7/3.5||< 0.8||0.8/1.2||2/10 - 4/30 - 10/30|
Fluxes and Slag Coagulants
FERROGEN scavenging and fluxing products for treatment ladles, transfer ladles and coreless induction furnaces.
SLAX slag coagulants are a range of products for coagulating and removing slag from the surface of melts in ladles or furnaces.
